Description

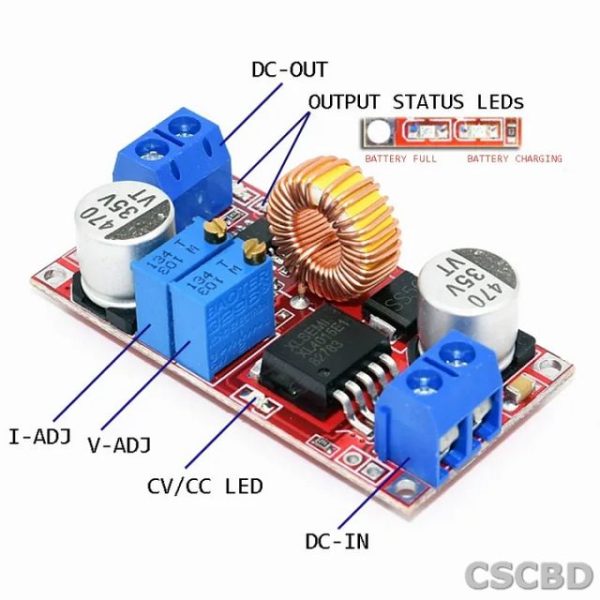

Product details of XL4015 Buck Converter 5A DC To DC Charging Board

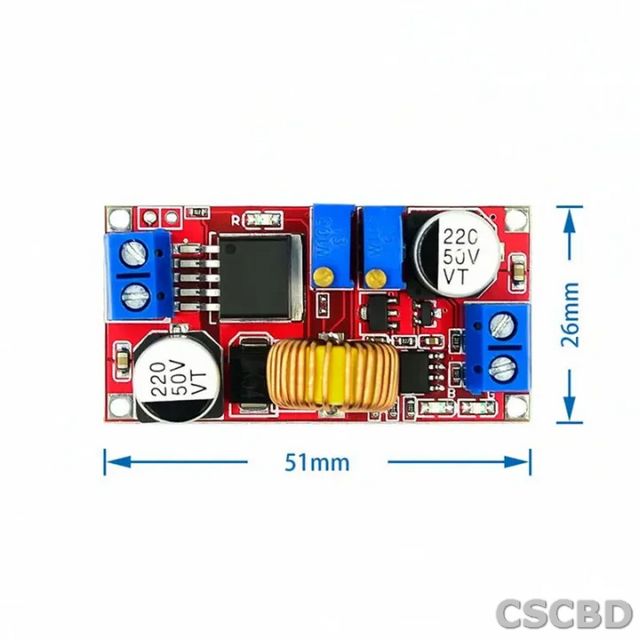

- Size: 5.2 x 2.65 x 1.4cm (L x W x H)
- Module Properties: non-isolated constant current and voltage module
- Rectification: non-synchronous rectification
- Input voltage: 8V-36V
- Output voltage: 1.25V-32V
- Output current: adjustable maximum 5A
- Conversion efficiency: 95% (the highest)
- Switching frequency: 180KHz
- Output ripple: 50mV (max) 20M bandwidth
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 2.5%
- Operating Temperature: -40to +85
